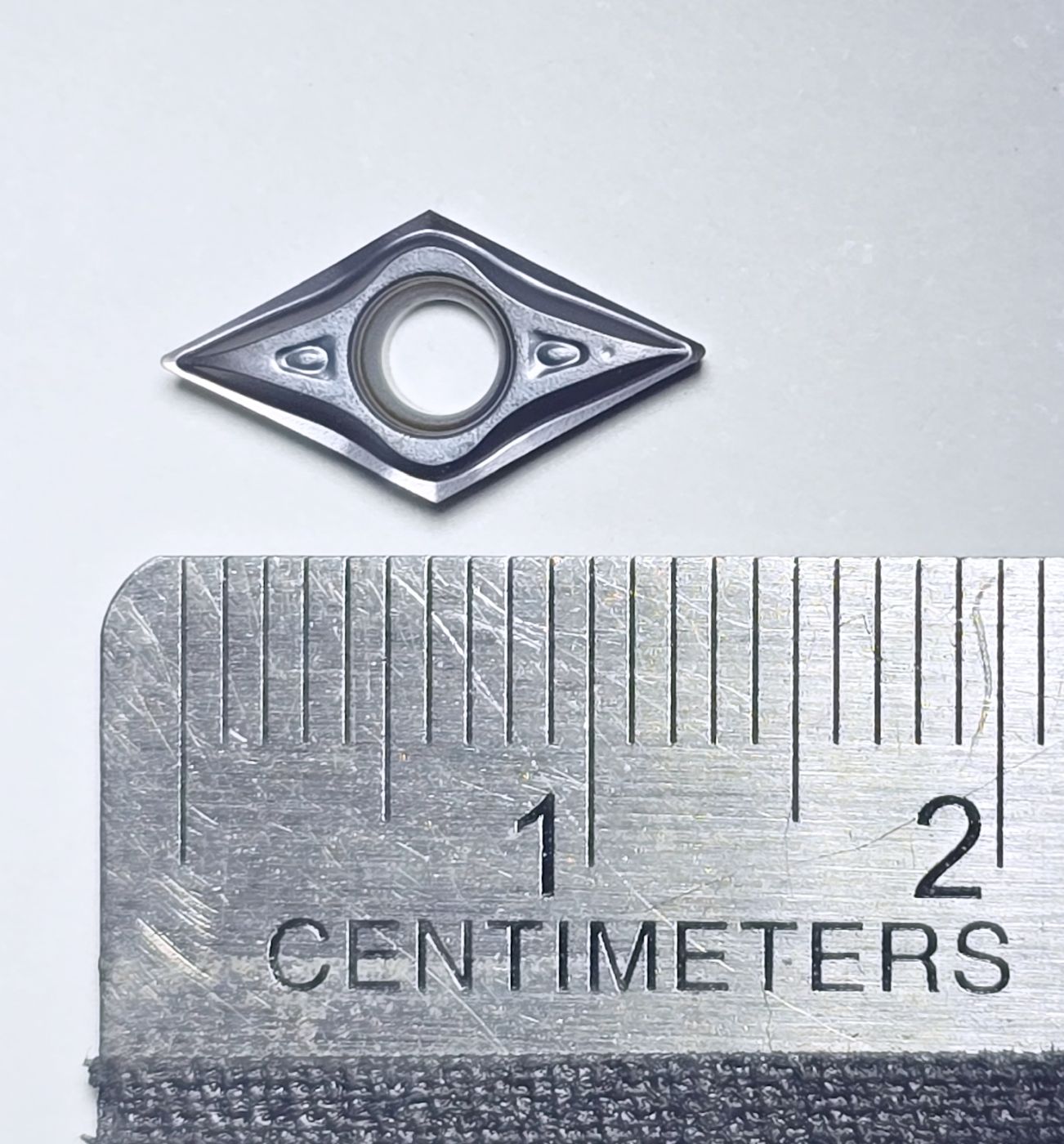

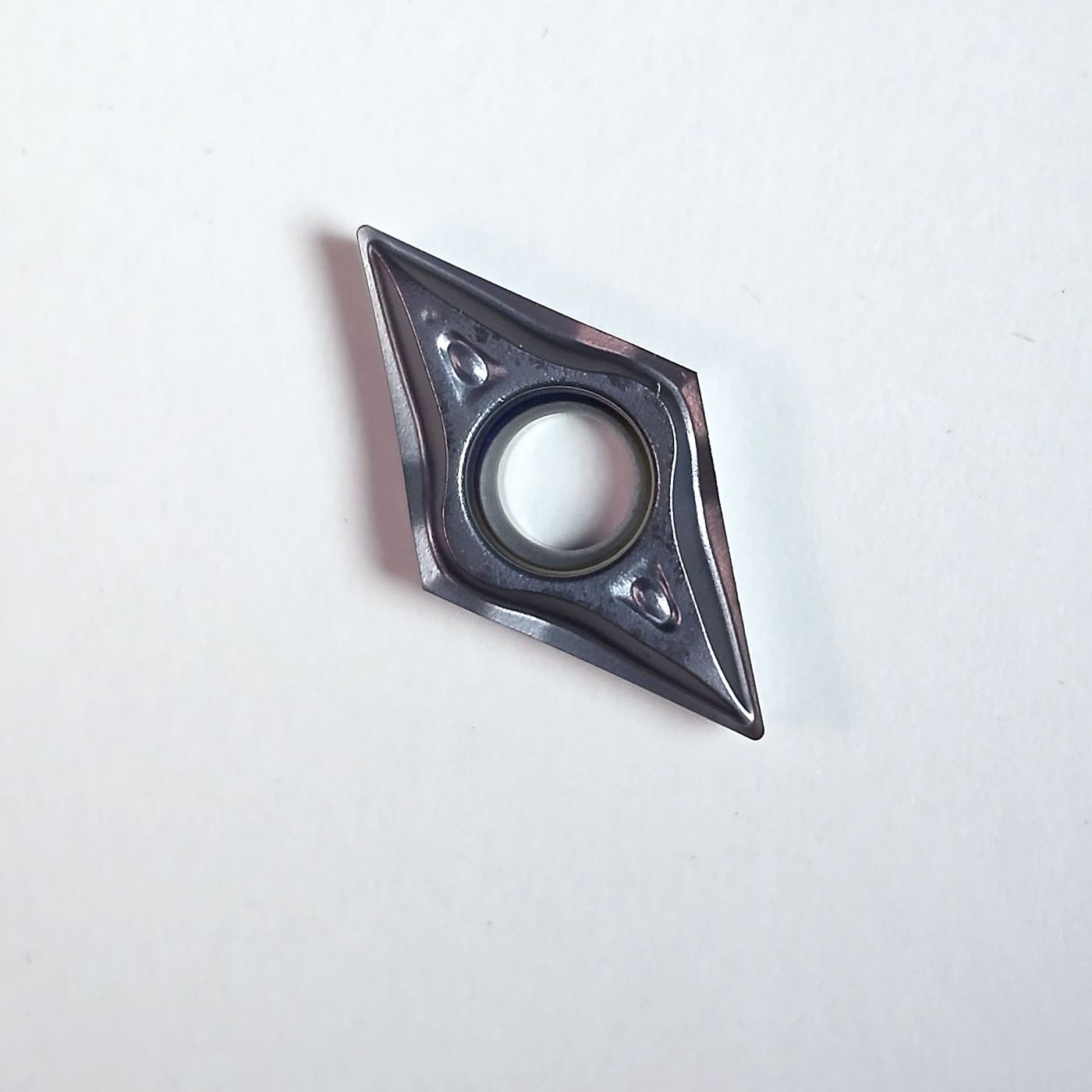

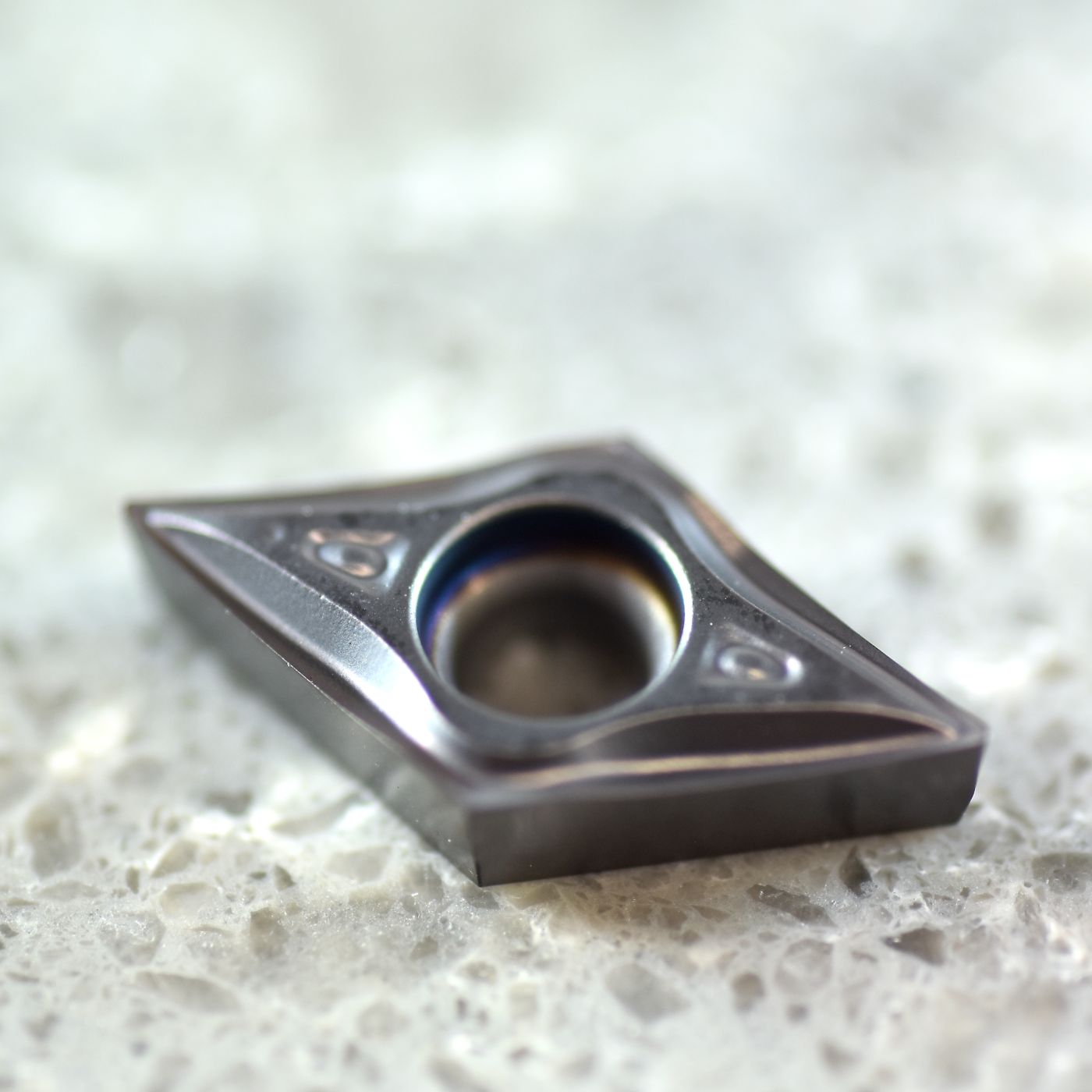

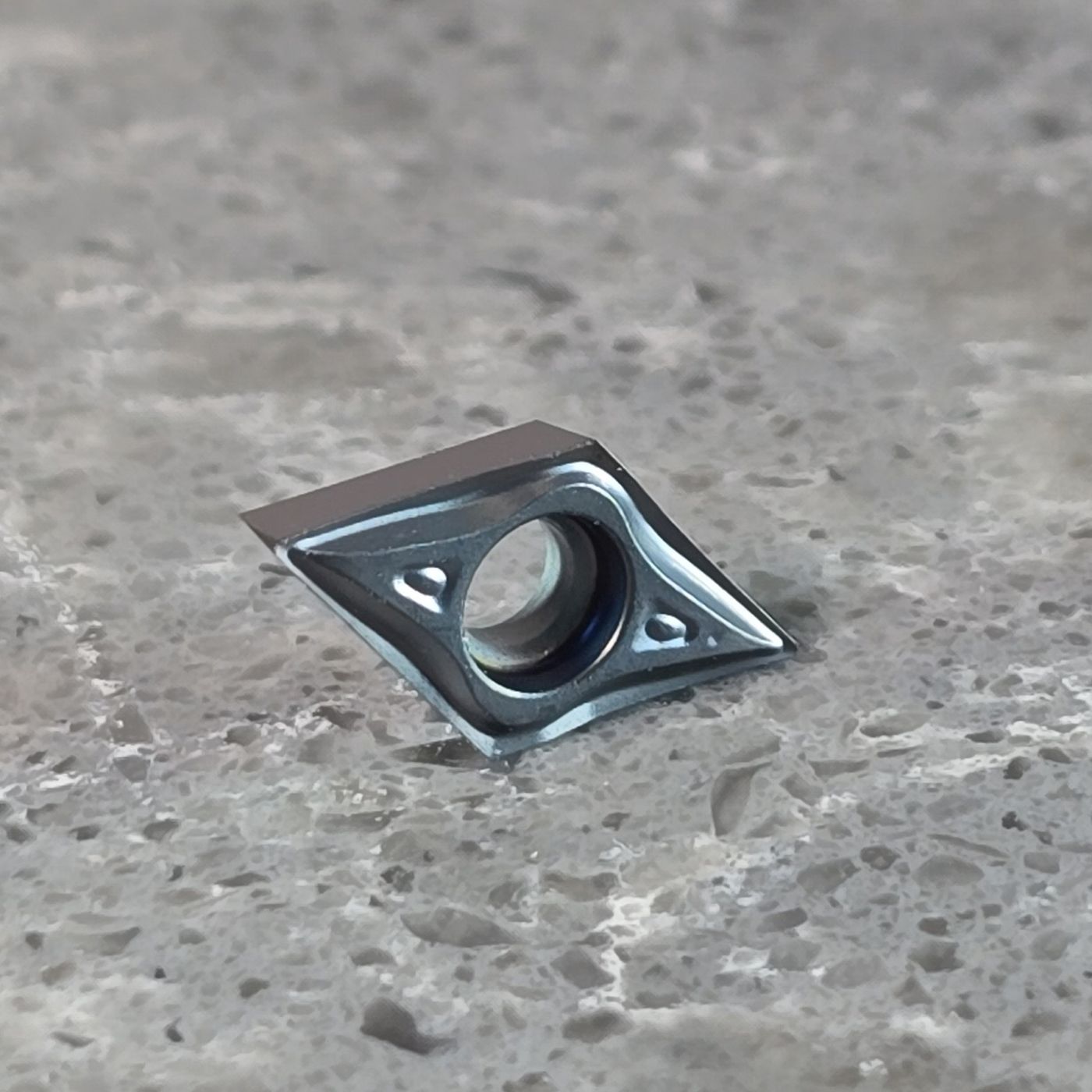

DCGT 070202-FS NW4225 Turning Insert

The DCGT 070202-FS NW4225 is a carbide turning insert used for finishing operations,
primarily on steel and cast iron.

Technical Specifications

The alphanumeric code on the insert conforms to ISO standard coding for indexable inserts,
providing the following specifications:

• DCGT: This is the insert shape designation.
  • D: 55° diamond shape.
  • C: 7° normal clearance angle.
  • G: Tolerance class (e.g., G-class for fine cutting).

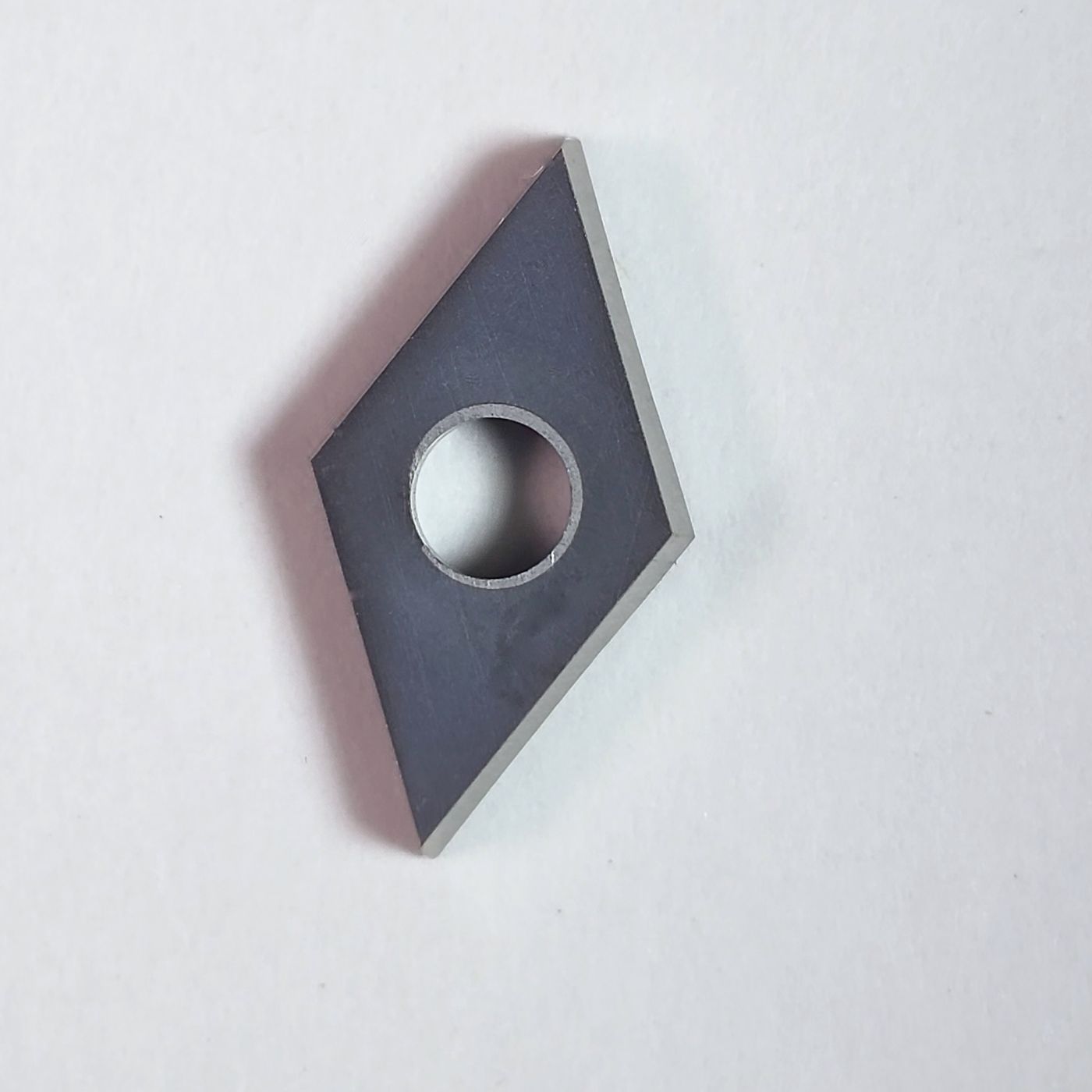

  • T: Single-sided insert with a fixing hole and a chipbreaker on one side.
• 070202: This describes the physical dimensions.
  • 07: The length of the cutting edge is approximately 7 mm.
  • 02: The insert thickness is approximately 2.38 mm.
  • 02: The corner radius (nose radius, RE) is 0.2 mm
    (or 0.008 inches).
• FS: This is the chipbreaker designation, designed for finishing and
  fine finishing applications. It improves chip evacuation and surface finish in
  light cutting conditions.
• NW4225: This is the manufacturer’s specific grade designation for the
  carbide material and coating. This grade is typically suited for turning operations
  on low-carbon steel, medium-carbon steel, alloy steel, and various types of cast iron.
